900 Years of Seismic Resilience: The Story of Koti Banal Houses

                                                                                                      Introduction

The Koti Banal architecture is an impressive ancient construction technique that has withstood the test of time in Uttarkashi district, Uttarakhand, India, for more than 900 years. This impressive architectural structure has attracted massive attention due to its remarkable earthquake-resistance feature, which has made these buildings withstand numerous earthquakes throughout history without suffering serious damage.

Marked by the harmonious marriage of functionality and beauty, Koti Banal style mainly uses locally available materials like stone and wood, thus enabling the structures to blend naturally with their environments. The plan is usually simple and rectangular, which enhances structural stability. Long horizontal wooden beams are used to spread weight evenly, while the low roof levels are deliberately planned to minimize wind pressure and improve resistance to seismic activity.

The building also features shear walls that offer added support, successfully resisting earthquake lateral forces. Small openings are nicely integrated throughout the building, meant to minimize vulnerabilities while offering good ventilation and sunlight. The projecting balconies on the upper floors are also useful and pleasing on the facade. Generally, the architecture of Koti Banal demonstrates the resourcefulness and ingenuity of its architects, with complete awareness of local climatic conditions and a strong need for secure, long-term housing in a disaster-prone region.

                                                                                  Origin of the Art-Form

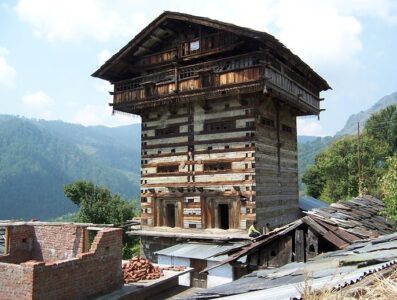

The Koti Banal style of architecture, though not widely recorded, is thought to have evolved as a specific reaction to the seismicity that is common in the area of Uttarkashi. Researchers estimate that the particular style arose about 1,000 years ago and that the earliest surviving buildings date back to around 880 ± 90 years BP. In contrast to other Indian architectural styles, Koti Banal is uniquely associated with the Uttarkashi district, thereby emphasizing its cultural and geographical presence.

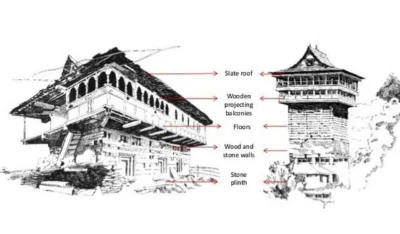

The building design is characterized by the use of materials found within the area, such as stone and wood, according to the local craft tradition. The applied techniques demonstrate a keen respect for the local geology and climate, as evidenced by a clever management of environmental factors. For example, the buildings are earthquake-proof, utilizing heavy walls and inclining roofs to provide strength. The technique also includes ornamented carvings and motifs, usually borrowed from local tradition and nature patterns, adding still more to the regional cultural tapestry.

In essence, the Koti Banal architectural style is not only a building method but also a symbol of the resourcefulness and determination of its creators, firmly ingrained in the history and culture of Uttarkashi.

                                                                          How it Flourished

The Koti Banal style of architecture thrived in Uttarkashi district based chiefly on its impressive resistance to earthquake shocks. This is a place of historic and cultural landscapes and home to many seismic movements that have occurred over the centuries, not least a number of strong earthquakes that have influenced its architectural history. Impressively, much of the architecture created in Koti Banal style has survived such strong earthquakes, and this has had a strong bearing upon their long-term popularity among the local population.

The design style is not only a sign of the building expertise but also an expression of the local economic and cultural environment. The prominence of locally accessible materials, i.e., wood and stone, was an integral part of the evolution of the style. Moreover, the durability and minimalistic maintenance needs that the Koti Banal style promotes make it especially suited for the demands created by the surrounding environment. The design of buildings typically incorporates aspects that render the buildings seismically resistant, an indication of a wide scope of knowledge regarding building design and natural disasters occurring in the region. Koti Banal style is typically a robust expression of cultural identity that unites the history of the community and the environment.

Details about the Motifs

The Koti Banal style has several common motifs, including:

1. Simple rectangular plan: The structures are made in simple rectangular form, which is stable and supporting during the earthquake.
2. Horizontal timber beams: Horizontal timber beams provide support and facilitate even weight distribution of the building.
3. Lowered roof height: The lowered roof height is intended to minimize the effect of damage resulting from earthquakes and strong winds.
4. Shear walls: Shear walls are used to add strength and to withstand lateral forces during earthquakes.
5. Narrow openings: Narrow openings are utilized to minimize exposure to damage from earthquakes and high winds.
6. Projecting balconies: The projecting balconies on the upper floors provide strength and help in distributing the weight of the building uniformly.

                                                                                                      Reference to Pop-Culture

The Koti Banal architectural style, with its distinctive structural features and historical value, remains yet to be made popular in popular culture. Nevertheless, its distinctive features have garnered significant interest from scholars, architects, and engineers. Scholars have researched the Koti Banal style extensively, particularly the distinctive earthquake-resistant features of the style, which are of the greatest importance to contemporary construction techniques, particularly in seismically active regions.

Aside from its structural value, the complexity of forms and standard detailing of Koti Banal architecture deserves the artistic merit of the region, inspiring much interest in conserving this heritage. There have been attempts to record and campaign for this kind of architecture, testifying to its value in local identity and continuity. Through an examination of the possible applicability of Koti Banal principles to modern architectural practice, debate continues on how traditional style can be employed to influence and enrich modern design without being disloyal to cultural heritage.

       Current Status

The Koti Banal style of architecture, with its distinctive building methods and cultural heritage, is facing a very serious threat from a critical lack of awareness and appreciation among the local population. With the residents moving towards increased modernization of tastes, the majority of the traditional Koti Banal architecture is being abandoned, left to ruin, or demolished and rebuilt with new materials and new construction techniques.

This transformation not only denies the historic texture of the society but also degrades the distinct features that characterize the Koti Banal style, including its elaborate woodwork, natural material usage, and peaceful coexistence with nature. In an attempt to reverse this alarming trend, a number of activities are ongoing with the aim of conserving the Koti Banal heritage. Among them are extensive documentation and academic study of existing buildings, which attempt to engrave the architectural nuance and history of this style.

But these attempts are insufficient. There needs to be more vigorous campaigning to familiarize the local populace with the cultural and artistic significance of the Koti Banal style. Instructional programs, community workshops, and cultural fairs can provide an important ingredient in fostering heightened appreciation among the residents and in motivating active participation in preservation programs. Increased coordination among local administrations, non-profit organizations, and neighborhood residents will be necessary in the promotion of the significance of this distinctive architecture and in the preservation of such for generations to come.

Conclusion

The Koti Banal construction style is an ancient construction style of Uttarkashi district, Uttarakhand, India, that is 900 years old. It is a fine example of earthquake resistance and cultural heritage. This style depicts the intelligence and hard work of the constructors, combining utility and beauty. Its characteristics, such as simple rectangular floor plans, horizontal timber members, and shear walls, are primary reasons for its outstanding earthquake resistance. However, modernization and ignorance among locals pose significant threats to its conservation. To save this valuable cultural heritage, extensive documentation, academic research, and community outreach are essential. Ultimately, concerted efforts are required to preserve the cultural heritage of Koti Banal architecture for generations to come, so that its cultural heritage reigns.

References

Koti Banal: The Interesting Vernacular Architecture of Uttarkashi District

https://dmmc.uk.gov.in/files/pdf/Current_Science_Koti_Banal.pdf

Koti Banal architecture: How ingenuity of our ancestors conquered earthquakes

https://thebetterindia.com/37649/earthquake-resistant-houses-koti-banal-uttarakhand/
